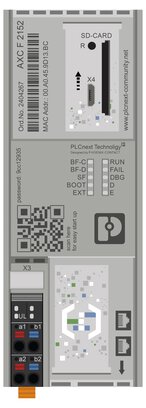

The PLCnext AXC F 2152 controller for the Axioline I/O system is fast, robust and easy to use. It has been consistently designed for maximum performance, easy handling and use in harsh industrial environments.
Category:PLC
Introducing the AXC F 2152 Controller – the cornerstone of precision control and automation. Engineered for versatility and performance, this advanced controller is designed to meet the demands of diverse industrial applications, offering seamless integration and robust functionality. The AXC F 2152 combines cutting-edge technology with a user-friendly interface, providing a powerful solution for process automation, machine control, and data management. Its modular design allows for flexibility and scalability, ensuring adaptability to evolving operational needs. With high-speed processing capabilities and a comprehensive set of communication interfaces, the AXC F 2152 empowers users to optimize control systems with efficiency and precision. Trust in the reliability of this controller to enhance productivity and streamline operations across various industries. Elevate your control solutions with the AXC F 2152 – where innovation meets performance in the realm of industrial automation.
Linux operating system Supports high-level languages Up to 63 AXIO I/O modules can be mounted side by side 2x Ethernet interfaces (integrated switch) Increased resistance to EMI Extended temperature range of -25 °C … 60 °C PROFINET support AXC F 2152 Controller Connection to PROFICLOUD Numerous protocols supported such as: http, https, FTP, OPC UA, SNTP, SNMP, SMTP, SQL, MySQL, DCP, etc. Connection to the PLCnext Store AXC F 2152 Controller
| Type | modular |
| Product type | Controller |
| Product family | PLCnext Control |
| Insulation characteristics | |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Overvoltage category | II |
| Pollution degree | 2 |
| Display | |
| Diagnostics display | No |
| Processor | Arm® Cortex®-A9 2x 800 MHz |
| Flash memory | 512 Mbyte (internal flash memory) |
| SD card from Phoenix Contact (for external flash memory, see accessories) | |
| Retentive data storage | 48 kByte (NVRAM) |
| RAM | 512 Mbyte DDR3 SDRAM |
| IoT capability: PROFICLOUD | |
| IoT platform | PROFICLOUD |
| Supports cloud computing | yes |
| IEC 61131 runtime system | |
| Program memory | 8 Mbyte |
| Data storage system | 12 Mbyte |
| Axioline | |
| Amount of process data | max. 1482 Byte (per station (total input and output data)) |
| max. 1024 Byte (Axioline F local bus (input)) | |
| max. 1024 Byte (Axioline F local bus (output)) | |
| Number of supported devices | max. 63 (per station) |
| Number of local bus devices that can be connected | max. 63 (observe current consumption) |
| PROFINET | |
| Device function | PROFINET controller, PROFINET device |
| Update rate | min. 1 ms (4 devices) |
| min. 16 ms (64 devices) | |
| Conformance Class | B |
| Number of supported devices | max. 64 (at PROFINET controller) |
| Supported functions | MRP FSU PROFINET controller |
| MRP PROFINET device | |
| Device ID | 0142hex |
| Vendor ID | 00B0hex |
| Function | |
| Diagnostics display | No |
| Controller redundancy | yes |
| Safety function | No |
| Functionality | |
| Programming languages supported | Instruction list (IL) |
| Symbolic flowchart (SFC) | |
| Ladder diagram (LD) | |
| Function block diagram (FBD) | |
| Structured text (ST) | |
| C++ | |
| C# | |
| Java | |
| Python | |
| Simulink | |
| System requirements | |
| Engineering tool | PLCnext Engineer |
| Eclipse | |
| Visual Studio | |
| MATLAB® Simulink® | |
| Application interface | OPC UA |
| Real-time clock | |
| Realtime clock | Yes |
| Description realtime clock | 1.73 s/day = 20 ppm at 25 °C |
| Potentials: Communications power UL feed-in (the supply of the Axioline F local bus UBus is generated from UL) | |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC … 30 V DC (including all tolerances, including ripple (± 5 %)) |
| Current draw | max. 442 mA (with 1 A at UBus for the I/Os and UL = 24 V) |
| Power consumption | max. 10.6 W (with 1 A at UBus for the I/Os and UL = 24 V) |
| Protective circuit | Surge protection; electronic |
| Reverse polarity protection; electronic | |
| Potentials: Axioline F local bus supply (UBus) | |
| Supply voltage | 5 V DC (via bus base module) |
| Power supply unit | 1 A |
| Axioline F connector | |
| Connection method | Push-in connection |
| Conductor cross section, rigid | 0.2 mm² … 1.5 mm² |
| Conductor cross section, flexible | 0.2 mm² … 1.5 mm² |
| Conductor cross section AWG | 24 … 16 |
| Stripping length | 8 mm |
| Web server | yes |
| Axioline F local bus | |
| Number of interfaces | 1 |
| Connection method | Bus base module |
| Transmission speed | 100 Mbps |
| Ethernet | |
| Bus system | RJ45 |
| Number of interfaces | 2 (Switched internally) |
| Connection method | RJ45 jack |
| Note on the connection method | Auto negotiation and autocrossing |
| Transmission speed | 10/100 Mbps (full duplex) |
| Transmission physics | Ethernet in RJ45 twisted pair |
| Transmission length | max. 100 m |
| Protocols supported | HTTP |
| HTTPS | |
| SFTP | |
| SNTP | |
| IPsec | |
| syslog | |
| OPC UA | |

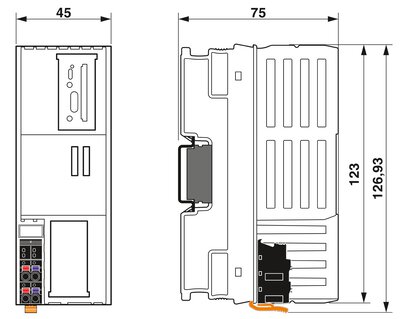

| Dimensional drawing | |
| Width | 45 mm |
| Height | 126.93 mm |
| Depth | 75 mm |
| Note on dimensions | The depth applies when a TH 35-7.5 DIN rail is used (in accordance with EN 60715). |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C … 60 °C up to 2000 m above mean sea level (observe derating) |
| -25 °C … 55 °C up to 3000 m above mean sea level (observe derating) | |
| 55 °C (with max. 1 A on UBus) | |
| 55 °C … 60 °C (only in conjunction with an Axioline F power module AXL F PWR 1H (Item no. 2688297)) | |
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Permissible humidity (operation) | 5 % … 95 % (according to DIN EN 61131-2) |
| Permissible humidity (storage/transport) | 5 % … 95 % (according to DIN EN 61131-2) |
| Shock (operation) | 30g (in accordance with EN 60068-2-27/IEC 60068-2-27) |
| Vibration (operation) | 5g (in accordance with EN 60068-2-6/IEC 60068-2-6) |
| Air pressure (operation) | 70 kPa … 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 58 kPa … 106 kPa (up to 4500 m above mean sea level) |
| ATEX | |
| Identification | II 3 G Ex ec IIC T4 Gc |
| Certificate | TÜV 19 ATEX 8356 X |
| IECEx | |
| Identification | Ex ec IIC T4 Gc |
| Certificate | IECEx TUR 19.0031X |
| CCC / China-Ex | |
| Identification | Ex ec IIC T4 Gc |
| Certificate | , 2021122304114448 |
| UL Ex, USA / Canada | |
| Identification | Class I, Zone 2, AEx nA IIC T4 |
| Class I, Div. 2, Groups A, B, C, D | |
| Ex nA IIC Gc T4 | |
| Certificate | E366272 |
| UL, USA/Canada | |
| Identification | cULus |
| Certificate | E238705 |
| Corrosive gas test | |
| Identification | ISA S71.04.2013 G3 Harsh Group A, DIN EN 60068-2-60:2016-06 Method 4 |
| Industrial Cyber Security | |
| Identification | Industrial IT Security, IACS Component |
| Certificate | IITS2 029429 0027 |
| Note | Configuration: Security Profile active |
| Conformance with EMC directives | Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Electrostatic discharge (ESD)EN 61000-4-2/IEC 61000-4-2 Criterion B, 6 kV contact discharge, 8 kV air discharge |
| Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Electromagnetic fieldsEN 61000-4-3/IEC 61000-4-3 Criterion A, Field intensity: 10 V/m | |
| Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Fast transients (burst)EN 61000-4-4/IEC 61000-4-4 Criterion B, 2 kV | |
| Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Transient overvoltage (surge)EN 61000-4-5/IEC 61000-4-5 Criterion B, DC supply lines: ±0.5 kV/±0.5 kV (symmetrical/asymmetrical), fieldbus cable shield: ±1 kV | |
| Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Conducted interferenceEN 61000-4-6/IEC 61000-4-6 Criterion A, Test voltage 10 V | |
| Noise emission test in accordance with EN 61000-6-4/IEC 61000-6-4 | |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Mounting type | DIN rail mounting |
| Connection method | Push-in connection |
| Item number | 2404267 |
| Packing unit | 1 pc |
| Minimum order quantity | 1 pc |
| Sales key | DRA |
| Product key | DRADAC |
| Catalog page | Page 10 (C-6-2019) |
| GTIN | 4055626356280 |
| Weight per piece (including packing) | 278.633 g |
| Weight per piece (excluding packing) | 223 g |
| Customs tariff number | 85371091 |
| Country of origin | DE |
